Water Flux
Évolène, Suisse (Scrambled Flat 2.0)
Architect: R&Sie(n)… Paris
Creative team: François Roche, Stéphanie Lavaux, Jean Navarro
Engineer: Guscetti & Tournier, Geneva
Interior Design ; R&Sie(n) + Mathieu Lehanneur (furnitures)
Museum design concept and apparatus ; Mathieu Lehanneur
Key dimensions: 1,000 m2
Client: Maison des Alpes, Public Foundation
Cost: 10 million FS

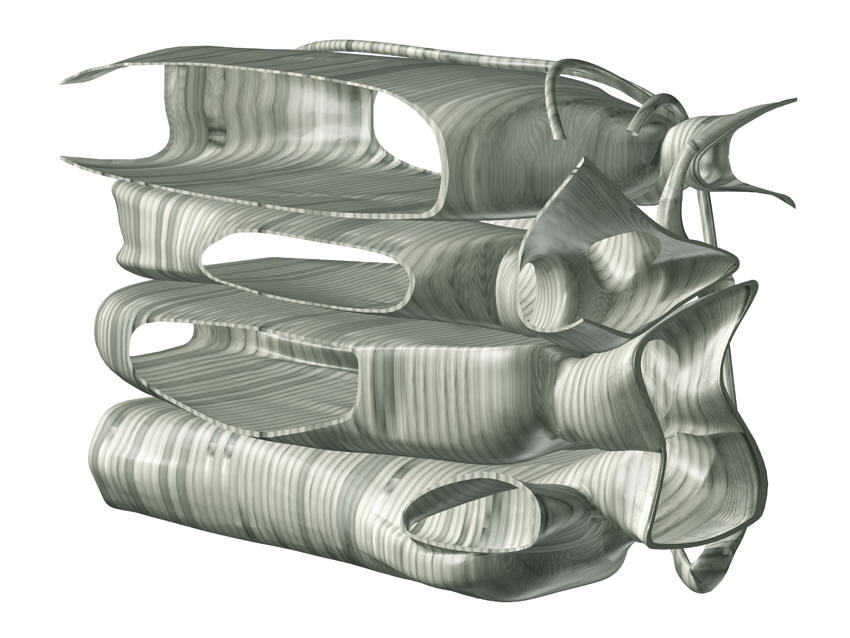

Design of a building for an art museum/alpine ice research station
Scenario:
1) Digitization of the envelope of a traditional habitat.
2) Scooping out hollows within this volume as if it were an ice cavity, but in
full wood by a 5 axes drill machine.
3) Water states and flows vary according to the seasons: The ice flows and freezes; the ice façades freeze and melt, forming a pond in front of the building.
4) Exacerbation of the winter climate by artificial snow (500 m3)
5) Construction by CNC machine processing, 5 axes, in full wood (2000m3-1000 trees) and reassembling the manufactured 180 pieces on site.
6) Reactivation of local economy
Go to Movie of prototyping by 5 axes CNC (4 mo streaming mpeg4)
CNC machine 5 axes, maximum surface 40x5 m
