(n)certainties – Columbia – Fall 2008

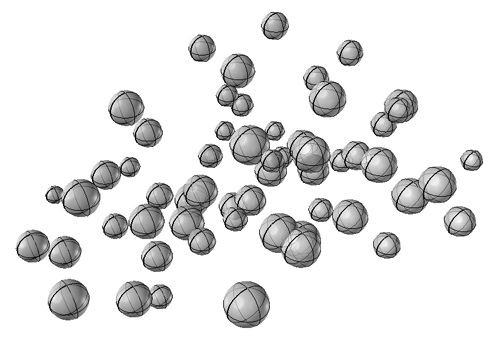

This script is creating several generations of groups of spheres at different height:

Option Explicit
‘If it is working then scripted by Eduardo Mayoral
‘If Not scripted by anyone else

Call Spheres()

Sub Spheres()

 ’===================================================
 ’  Set Up Starting Position
 ’===================================================

 Dim arrPt1, intGenerations

 arrPt1=Rhino.GetPoint
 intGenerations = Rhino.GetInteger

 Call generate(arrPt1, intGenerations, 1)

End Sub

‘===================================================
‘  Function to generate number of Spheres
‘===================================================

Function generate(arrPt, intGenerations, intCurrentGen)

 If intCurrentGen < intGenerations Then

  Dim intSpheres, arrGenPt

  intSpheres = CInt(funcRnd(5,3))
  Rhino.Print intSpheres

  arrGenPt =  funcGeom(intSpheres,arrPt)

  Call generate(arrGenPt, intGenerations, intCurrentGen+1)

 End If

End Function

‘===================================================
‘  Function to control Distances between Spheres
‘===================================================

Function funcGeom(intSpheres,arrPt)

 Dim i, strLine, dblAngle, arrEndPt, Lines
 Dim d1, d2

 d1 = funcRD (12,9)
 d2 = funcRD (40,30)

 dblAngle = 360/intSpheres

 For i = 0 To intSpheres

  If i <> intSpheres Then

   strLine = Rhino.AddLine(arrPt, array(arrPt(0),arrPt(1)+d2,arrPt(2)+2*d2))
   Call Rhino.RotateObject(strLine,arrPt,(i*dblAngle))

   arrEndPt = Rhino.CurveEndPoint(strLine)
   Call Rhino.AddSphere(arrEndPt,funcRnd(15,3))


  Else

   strLine = Rhino.AddLine(arrPt, array(arrPt(0),arrPt(1)+d2,arrPt(2)+d1))
   Call Rhino.RotateObject(strLine,arrPt,funcRnd(360,dblAngle))

   arrEndPt = Rhino.CurveEndPoint(strLine)

   funcGeom = arrEndPt

  End If

 Next

 Lines = Rhino.ObjectsByType(4)
 Call Rhino.DeleteObjects(Lines)

End Function

‘===================================================
‘  Random Function for Distances and Radius
‘===================================================

Function funcRnd(intMax,intMin)

 Randomize

 funcRnd = (intMax – intMin)+(rnd+intMin)

End Function
